Adding aftermarket equipment to the rear of your Ford Ranger, whether it's a swing-out tire carrier, a camper shell, fifth-wheel towing, or a service body that replaces the bed altogether, often times results in the loss of your OE backup camera functionality because the camera mounted in the tailgate handle is either blocked or has been removed completely. Rostra Accessories offers a complete line of interface harnesses and aftermarket cameras for 2019-2021 Ranger that plug directly into the connector on the underside of the truck near the rear bumper which allows you to keep this important safety feature while often using a camera that's superior in functionality to the OE device.
If you have any questions about using a backup camera relocation system with your Ford Ranger, or want to share details of the equipment that you're adding to the back of the truck, please click here to email us.
Tailgate Camera Relocation Systems for the 2019 Ford Ranger
Click image to enlarge...
Select a camera below...
250-8674-3BL
250-8674-LPB
250-8674-B
250-8674-BMHQ
250-8674-WIR
250-8674-BIR
250-8674-ULT
250-8674-TAB
250-8674-W

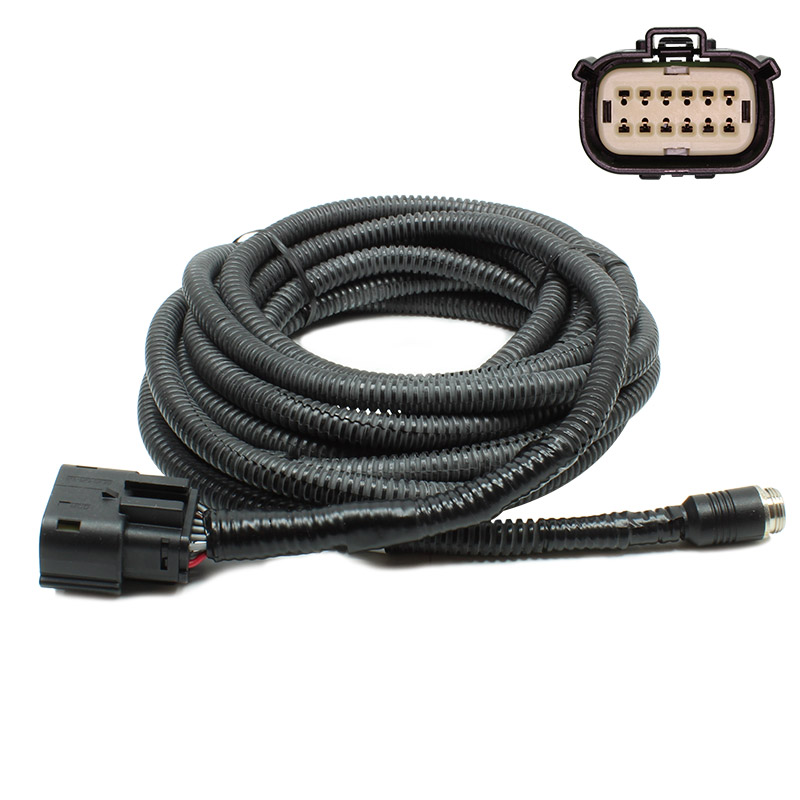

- Harness Specifications
- Displays camera on OE screen.
- 5-meter (14.5-foot) length.
- Plug-and-play vehicle-side connector.
- Convoluted tubing protective jacket.
- Requires no splicing into factory wiring.
- 4-Pin thread-together camera connector.
- Includes dielectric grease.
Tailgate Camera Relocation Systems for the 2019.5-2020 Ford Ranger
Click image to enlarge...
Select a camera below...
250-8670-3BL
250-8670-LPB
250-8670-B
250-8670-BMHQ
250-8670-WIR
250-8670-BIR
250-8670-ULT
250-8670-TAB
250-8670-W
- Harness Specifications
- Displays camera on OE screen.
- 5-meter (14.5-foot) length.
- Plug-and-play vehicle-side connector.
- Convoluted tubing protective jacket.
- Requires no splicing into factory wiring.
- 4-Pin thread-together camera connector.
- Includes dielectric grease.
1-Meter Tailgate Camera Relocation Systems for the 2021-2022 Ford Ranger
Click image to enlarge...
Select a camera below...
250-8634-1M-LPB
250-8634-1M-B
250-8634-1M-BMHQ
250-8634-1M-TAB
250-8634-1M-W
- Harness Specifications
- Displays camera on OE screen.
- 1-meter (3.3-foot) length.
- Plug-and-play vehicle-side connector.
- Convoluted tubing protective jacket.
- Requires no splicing into factory wiring.
- 4-Pin thread-together camera connector.
- Includes dielectric grease.
5-Meter Tailgate Camera Relocation Systems for the 2021-2022 Ford Ranger
Click image to enlarge...
Select a camera below...
250-8634-3BL
250-8634-WIR
250-8634-BIR
250-8634-ULT
- Harness Specifications
- Displays camera on OE screen.
- 5-meter (14.5-foot) total length.
- Plug-and-play vehicle-side connector.
- Convoluted tubing protective jacket.
- Requires no splicing into factory wiring.
- 4-Pin thread-together camera connector.
- Includes dielectric grease.
Email Us
Feel free to use the form below to contact us if you have any questions or concerns about relocating your Ford Ranger's backup camera from the tailgate or if you're interested in purchasing one of the kits detailed on this page.
Download a copy of 3 Year/36,000 Mile warranty registration card by clicking here.
